Architecture

Overview

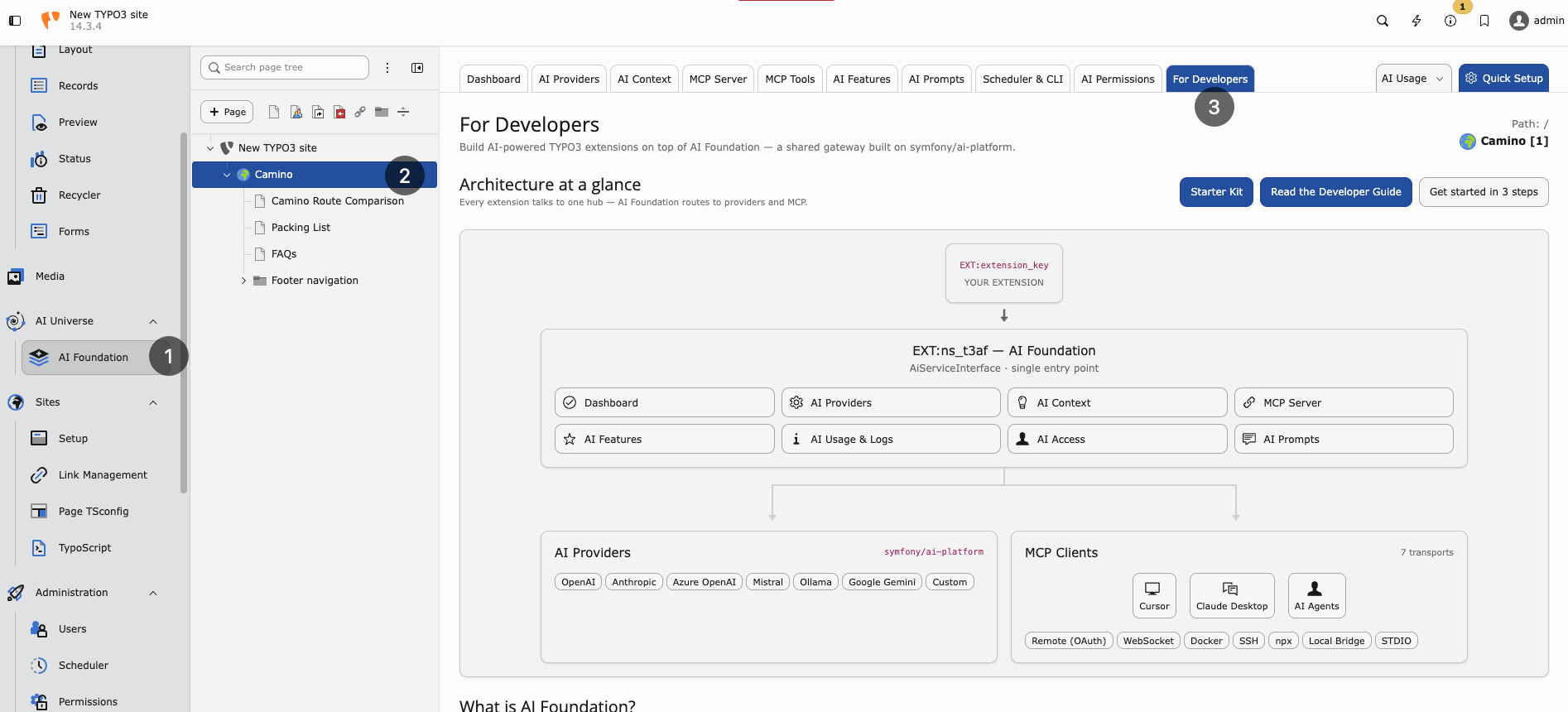

Architecture at a glance — extensions call AI Foundation, which routes to AI providers and MCP clients.

AI Foundation is a shared foundation layer:

Consuming Extension Code
        |
        v
AiServiceInterface
        |
        v
AdapterRegistry -> Provider adapters
        |
        v
   Provider APIs

Parallel support:

AiStatisticsService -> OpenAiOrganizationUsageService -> OpenAI Usage API
HttpAuthUtility    -> Protected URL fetching with optional Basic Auth

Main components

• Request orchestration: AiServiceInterface and AiService

• Provider adapters: AdapterRegistry and AdapterInterface implementations

• Statistics processing: AiStatisticsService and OpenAiOrganizationUsageService

• Engine configuration filtering: AiEngineConfiguration

• Utility and environment helpers: AiUniverseUtilityHelper

• HTTP auth helper: HttpAuthUtility

Configuration model

Runtime AI requests resolve through provider rows in AI Providers. Optional extension settings cover translation helpers, Basic Auth, notifications, and MCP switches. See Configuration.

This includes:

• provider adapters, encrypted API keys, and model IDs

• default provider selection

• optional temperature and capability flags on provider rows

• optional Basic Auth settings for protected URL fetching

Caching

The extension registers cache nst3af_statistics in ext_localconf.php.

Statistics service stores processed data in this cache to reduce repeated usage API calls.

Constraints

• No native frontend plugin and no Fluid frontend output in this package.

• Primary role is reusable service infrastructure.
